Single Channel Wired video receiver for CCTV Camera

Highlights

• The CCTV Camera Video Balun is capable of receiving and transmitting video signals over UTP wire without using the power supply. Enables cost-effective, point to point transmission appliance for up to 600 meters.
• This is 1 channel passive video transceiver can be used for CCTV Camera, BNC, Cat5 UTP and so on.

Features

• The CCTV Camera Video Balun is capable of receiving and transmitting video signals over UTP wire without using the power supply
• Enables cost-effective, point to point transmission appliance
• BNC connect the CCTV camera and video output device, cat5 or better cable connected the two balun transceiver
• Full-motion CCTV video at distances up to 600 meters when used with any passive transceiver
• Up to 1000 meter with any active UTP video receiver
• Video transmission via UTP CAT5 cable
• Receiving and transmitting video signals over UTP cable without using the power supply
• The CCTV Passive Video Balun supports all video device, such as camera, monitor, DVR card and recorder etc.
• No power required
• Frequency response: DC to 6MHz
• BNC Impedance: 75 ohm
• UTP, RJ45 Impedance: 100 ohm
• The Video Transceiver is easy to install, using the standard UTP cable system
• Connectors: Male BNC and terminal blocks
• 60dB crosstalk and noise immunity
• Unit dimension: 166x15x14mm
• Unit net weight: 36g
• Package Content: 2 x Video Balun
• In retail packaging

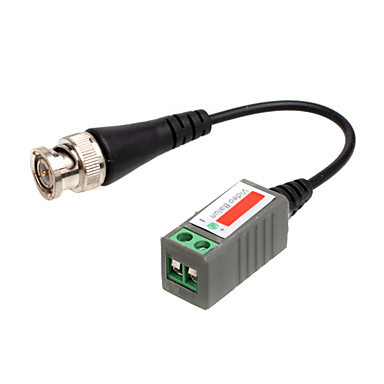

Single Channel Wired video receiver for CCTV Camera Images
